The production process of silicone hose Aug 22, 2025

Silicone hoses are generally produced using the "continuous extrusion + hot air vulcanization" process. The entire production line works like stretching noodles, extruding the rubber material into a tubular shape and then curing it as it moves forward. Finally, it is cut and rolled up. Here is the detailed process.

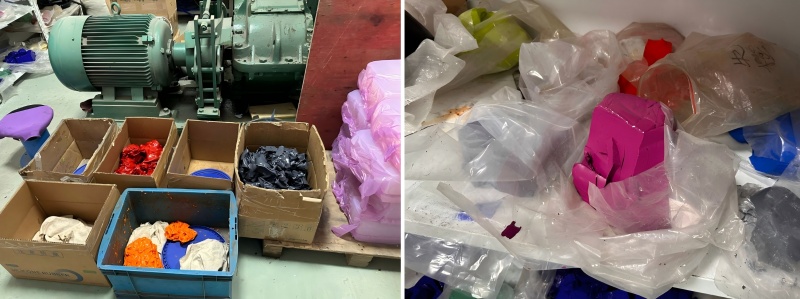

1. Raw material selection

Raw rubber: Generally, methyl vinyl silicone rubber (MVQ) with a Shore A hardness of 50-80 is selected.

Colorants/Pigments: Food-grade, non-toxic mineral pigments. Medical-grade multi-purpose platinum sulfide system.

Silicon hose intake kit

2. Ingredients and Mixing

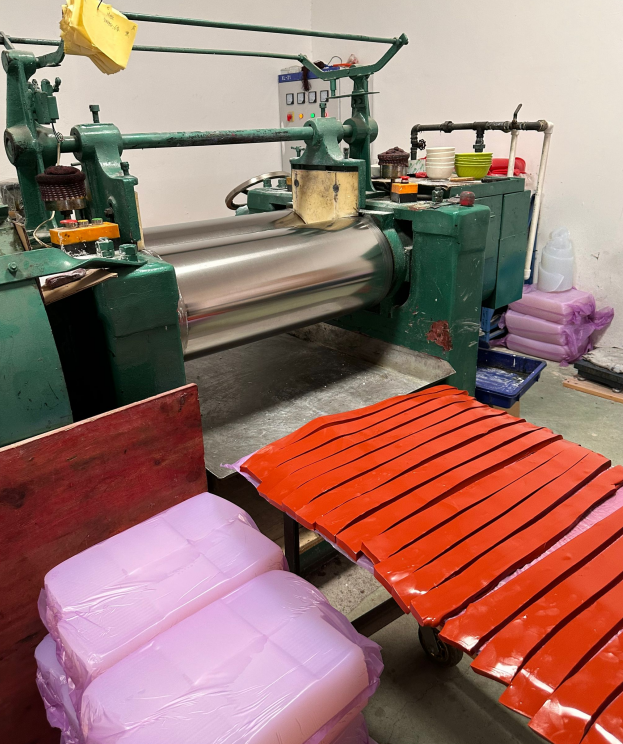

Use a 25L mixer or an open mill to blend the raw rubber, fillers, color mother, and vulcanizing agent together.

Mix well and let it stand for 8-12 hours to eliminate stress. Then cut it into strips or particles for storage.

Silicon hose intake kit

3.Extrusion molding

Single or double screw extruders, barrel temperature 45 - 80 ℃, die head 80 - 120 ℃.



4.One sulfurization (using a hot air tunnel)

  The tunnel is 6 to 12 meters long, with a temperature of 200 to 300 degrees Celsius, and lasts for 30 to 120 seconds.



5.Secondary vulcanization (deep oven vulcanization)

  At 200 ℃ for 2 to 4 hours, completely decompose and volatilize the residual peroxides/low-molecular-weight substances, thereby enhancing heat resistance and reducing compression permanent deformation.

Silicone hose intake kit

6.Online cooling and diameter measurement

   The device is cooled to room temperature through spraying or air cooling; the laser diameter measuring instrument provides real-time feedback, and any deviation will trigger an automatic alarm.

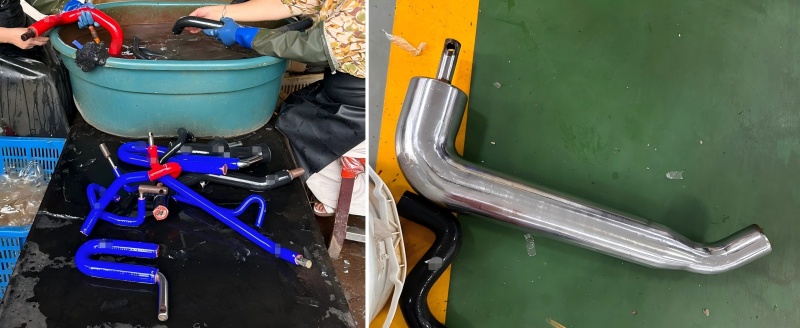

7.Demolding, cutting

Silicone hose intake kit

8.Inspection and Packaging

Appearance: Free of bubbles, impurities, and yellowing.

Dimensions: Inner diameter, wall thickness, ellipticity

Silicone hose intake kit
